10T Lightweight Air Suspension Trailer Axle TK10 Series

OVERVIEW

LEADTIME

PRODUCT DESCRIPTIONS

Product Overview


Semi-Trailer Air Suspension

Specially optimized for various road conditions, the semi-trailer air suspension features a reinforced design that ensures durability and strength. Despite its lightweight construction, it maintains the rated load capacity and is approximately 40kg lighter than single-axis guide arm air suspensions. The curved design of the main beam, coupled with high-density reinforcement, enhances impact resistance. Offering a range of high-standard air bags and shock absorbers, this suspension system significantly improves stability. Designed and manufactured using advanced European technology, it ensures superior reliability and stability even in challenging operating environments. It provides customers with flexible suspension assembly options and a variety of pneumatic control solutions.

Features At A Glance


1.The guide arm, designed and manufactured to high European standards, is compatible with optional accessories for various specialized models. 2.The unique structural design and material treatment of each axle fastening structure, axle mounting seat, and other components ensure long-lasting stability. 3.An optional lifting device maximizes tire lifespan and reduces fuel consumption and maintenance costs. During driving, it effectively absorbs the vibrations generated by the vehicle's operation, maintains the vehicle's stability, reduces shock, and keeps the comfort level. During driving and braking, effectively protect the safety of goods and vehicles and maintain the smoothness of the vehicle. The structure is simple and maintenance is convenient, reducing the daily cumbersome maintenance.

Air Suspension for Semi-Trailer	Air Suspension	Trailer parts Air Suspension

AXLE’S SUPERIORITY & TECHNICAL CHARACTERISTICS

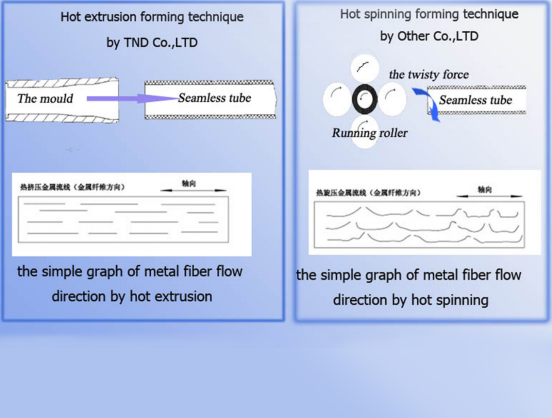

Comparing with Traditional Three-piece Welding Type Axle, Our One-piece Hot Extrusion Forming Type Axle Working More Stably, More CapacityandLighter Itself(Meet Light Weight Requirement ).

All axle tube is with heat treatment,this way improves its mechanical property largely.

Bearing and brake spider positions are with thickened procedure,this way improves the axle capacity and working life significantly.

Bearing positions are with middle frequency induction hardening, this way reduces the wear and tear probability,and extends its working life.

Boring 3 holes of the brake spider after welding, this way guarantees its accuracy, and makes the brake system more reliable and stable.

All brake shoes are with high frequency and roller treatment, all anchor pins are with high frequency and carburizing treatment, all cam shafts are with high frequency heat treatment locality.

Every axle is with its ID code for tracking.

Working well under different road condition all over the world(including south and north America, Europe,Middle East, Africa and Southeast Asia).

All products conform to the trailer axle production standard:JT/T475-2020.

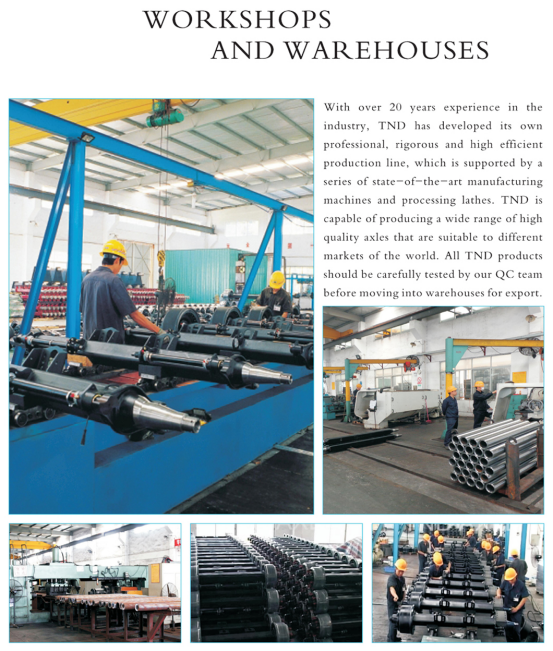

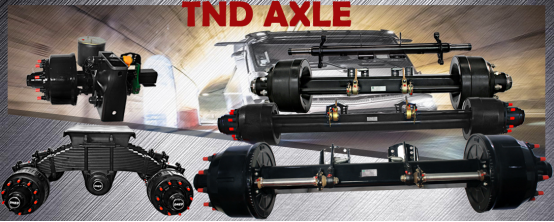

Guangzhou TND Axle Co., Ltd is well known as a state-level high tech group company dedicated to researching, designing and manufacturing of parts for trailers, semi-trailers and many other heavy duty vehicles. TND has been authorized with many international quality standard certificates such as ISO 9001:2008 and ISO/TS16949:2009. Main products include: American Axle, German Axle, Air Suspension, Bogie Suspension, Mechanical Suspension and many other trailer parts.

The strengths of TND have been admitted by both domestic and internationalcertification authorities and awarded with many authoritative certificates ofthe industry,with part of which listed above.

Q1. What products can you offer?
A: Our main products include: axles, suspensions and other related accessories.
Q2: What about your hot-extrusion thickening integrated Axle technology?
A: We developed the technology of thickening integral shaft by hot extrusion molding with its own intellectual property rights. Our self-designed hot-extrusion thickening integrated Axle technology is the first in the world to realize simultaneous thickening and extrusion, and the thickness of the axle end bearing can be customized according to the customer special request.
Q3: What's your best price for your product?
A: We will quote you best price according to your requirements, so when you making an inquiry, please let us know the quantity and material of the product you need. The more quantity, the better price.
Q4: How long is your delivery time?
A: For stocks, we can send the goods to loading port within 15days after receiving your deposit. For production period, it usually needs about 20days- 30days after receiving the deposit. Believe me, we are so eager to finish production than you.

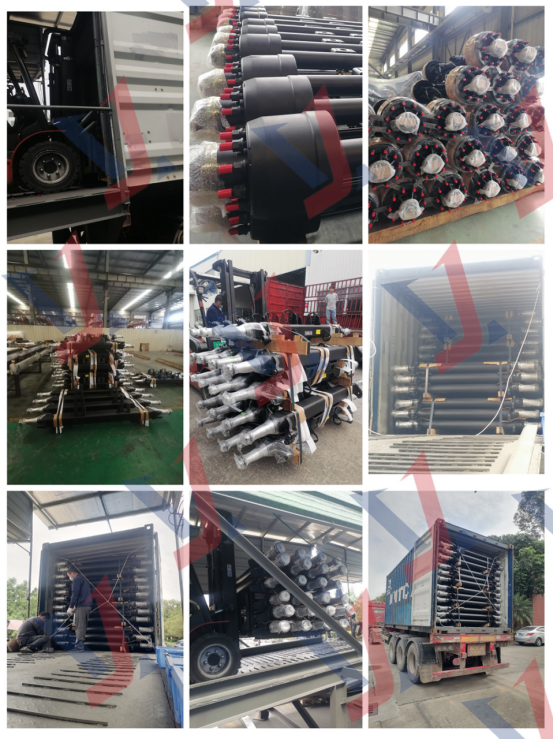

Q5: What about the package of the product?
A:The goods will be packed according to your requirements and in well protection before delivery. plastic wrap and wooden pallet.
Q6: If accept OEM service to made product as per buyer offering drawing?
Yes, we can offer OEM service. manufacture product as per buyer's offering drawing.
